Eidoll Electronics Co., Ltd sales the TAMURA all models fuse, the specifications as below:

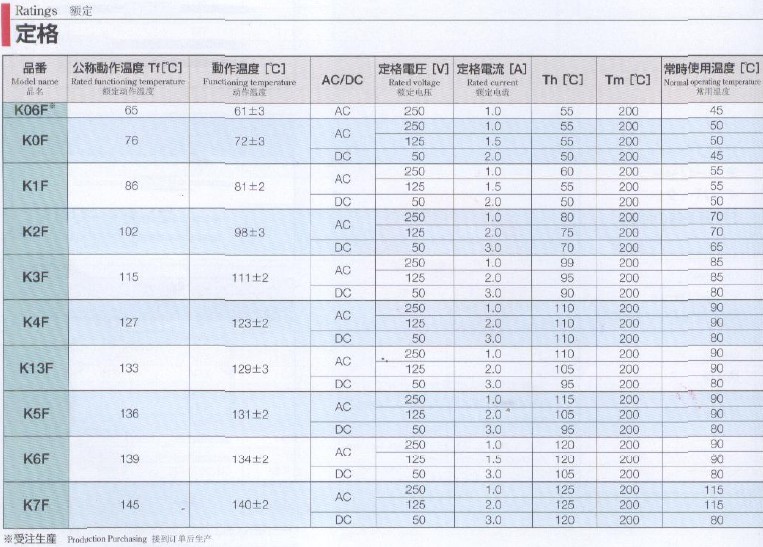

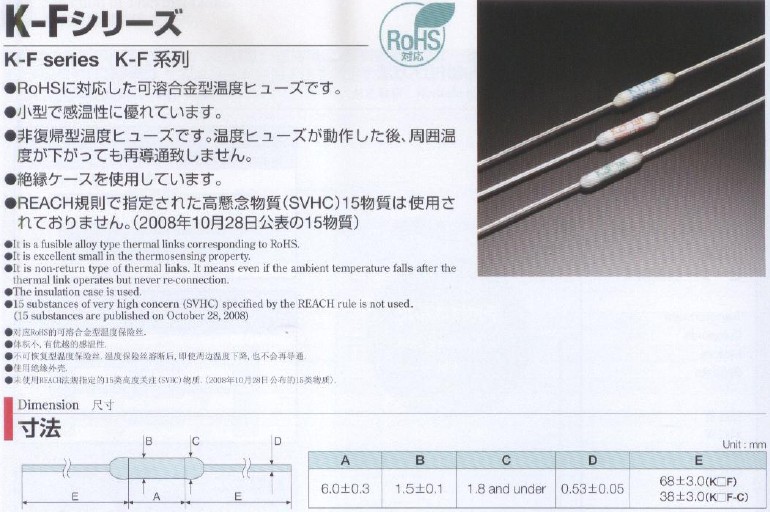

1)K-F Series,AC250V 1A/AC125V 1.5A-2A,the specification:
K06F,K0F,K1F,K2F,K3F,K4F,K13F,K5F,K6F,K7F.

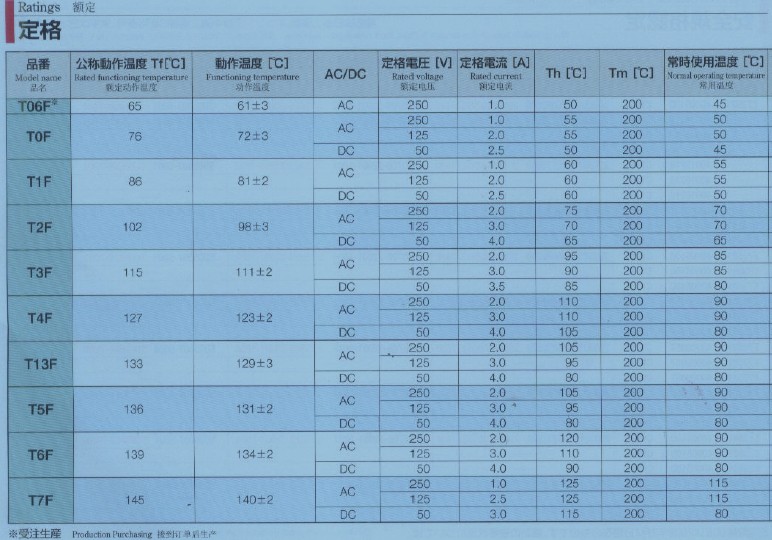

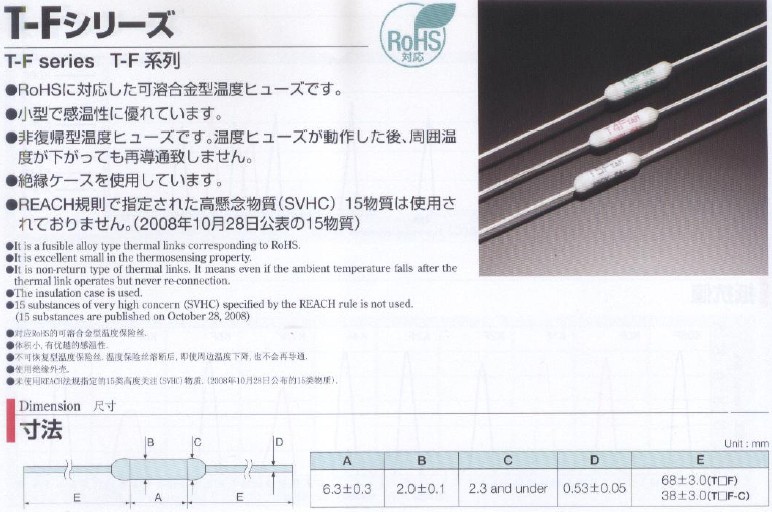

2)T-F Series,AC250V 1A/AC125V 2.0-3.0A,the specification as below:
T06F,T0F,T1F,T2F,T3F,T4F,T13F,T5F,T6F,T7F;

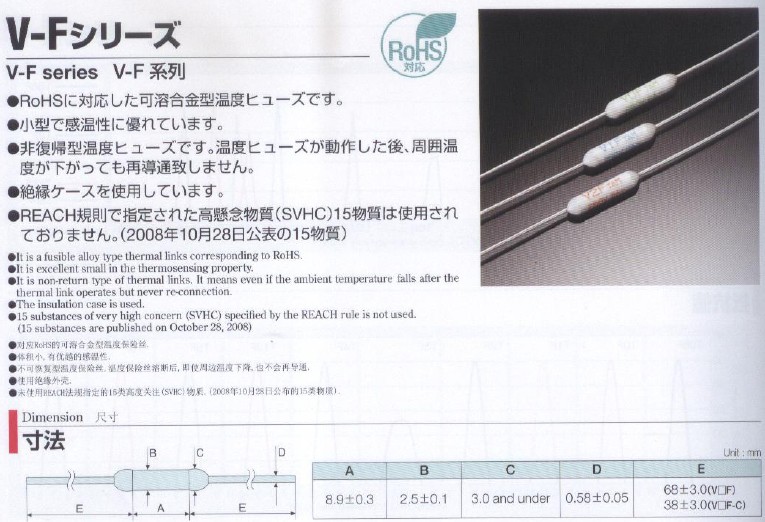

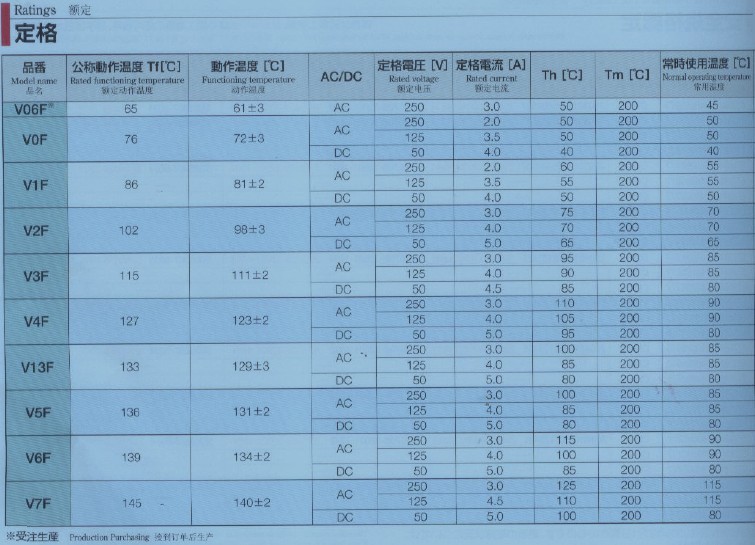

3)V-F Series,AC250V 3A/AC125V 3.5A-4A,the specification as below:
V06F,V0F,V1F,V2F,V3F,V4F,V13F,V5F,V6F,V7F;

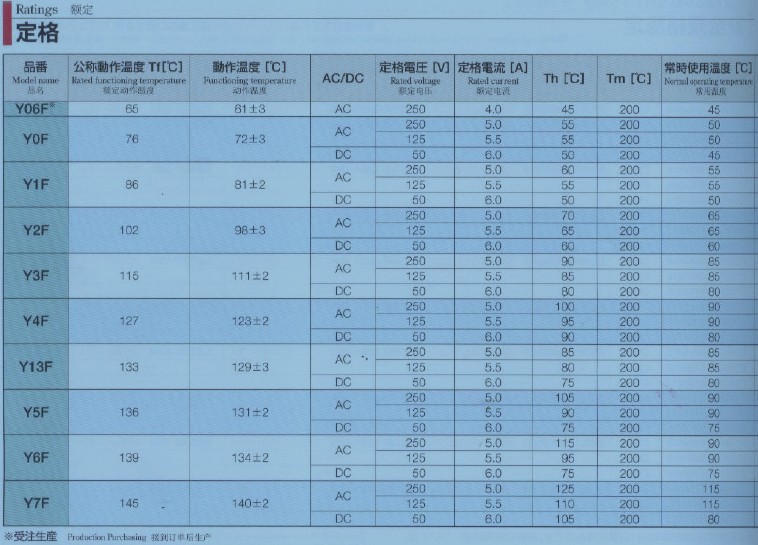

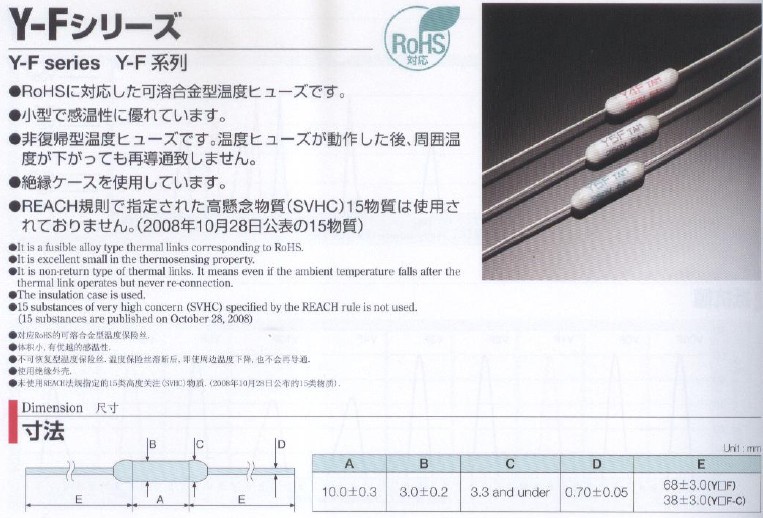

4)Y-F Series,AC250V 4.0-5.0A,AC125V 5.5-6.0A.the specification as below:
Y06F,Y0F,Y1F,Y2F,Y3F,Y4F,Y13F,Y5F,Y6F,Y7F;

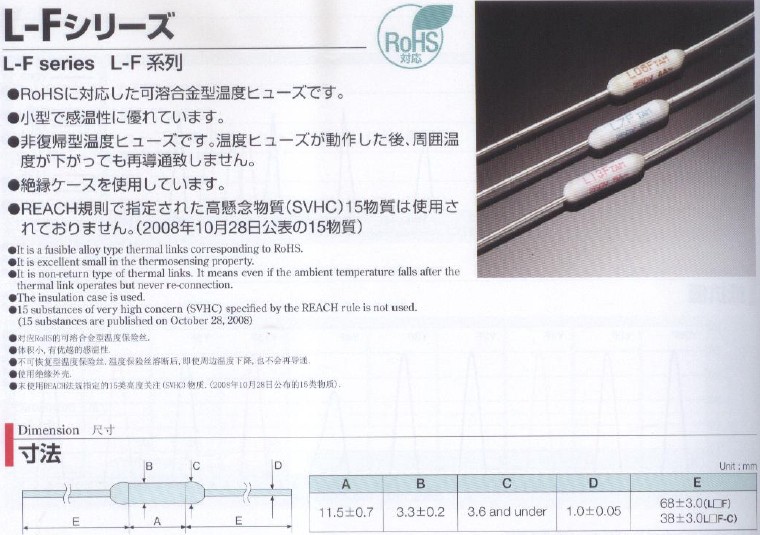

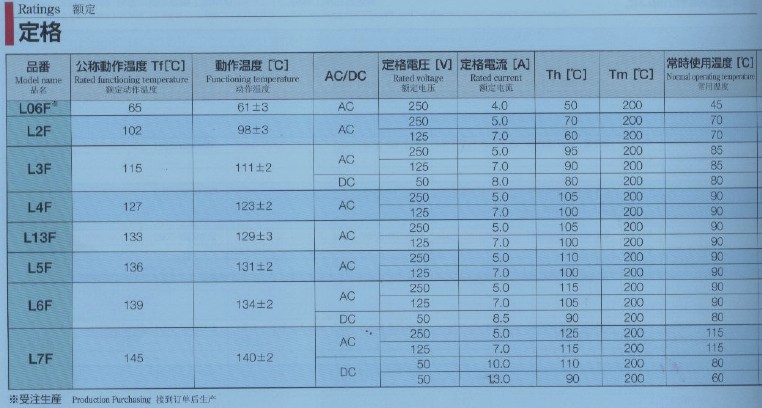

5)L-F Series,AC250V 4.0-5.0A/AC125V 7.0A,the specification as below:
L06F,L2F,L3F,L4F,L13F,L5F,L6F,L7F;

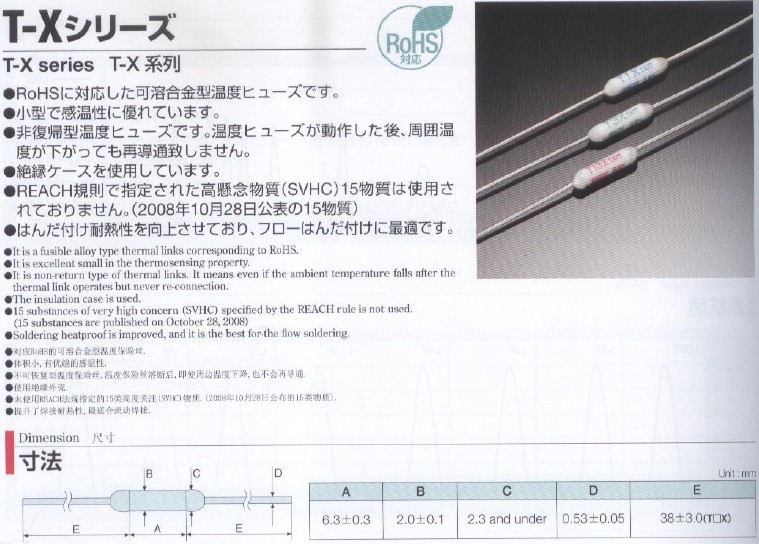

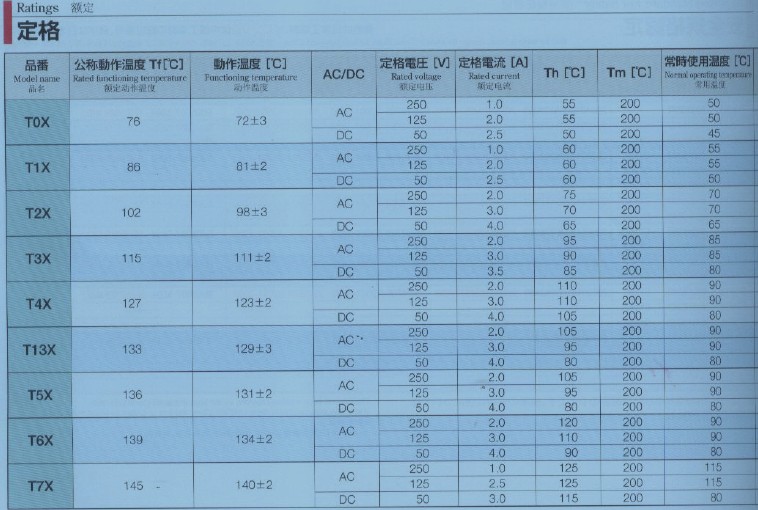

6)T-X Series,AC250V 1A/AC125V 2.0A, the specification as below:
T0X,T1X,T2X,T3X,T4X,T13X,T5X,T6X,T7X;

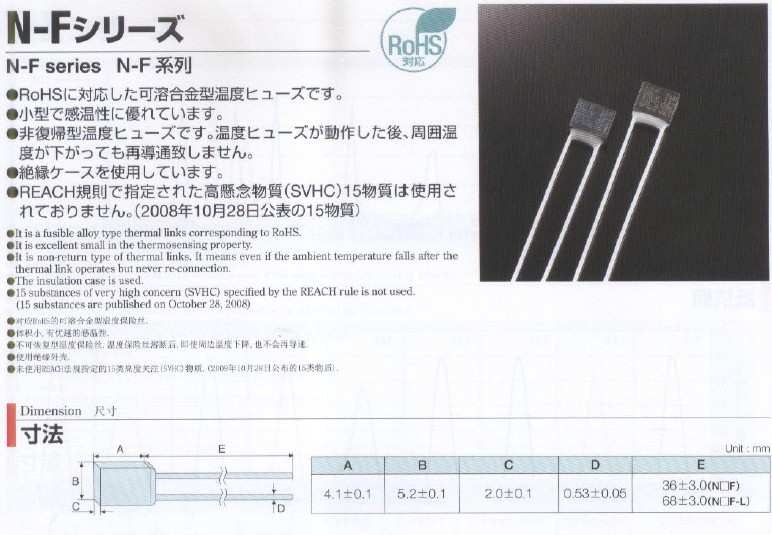

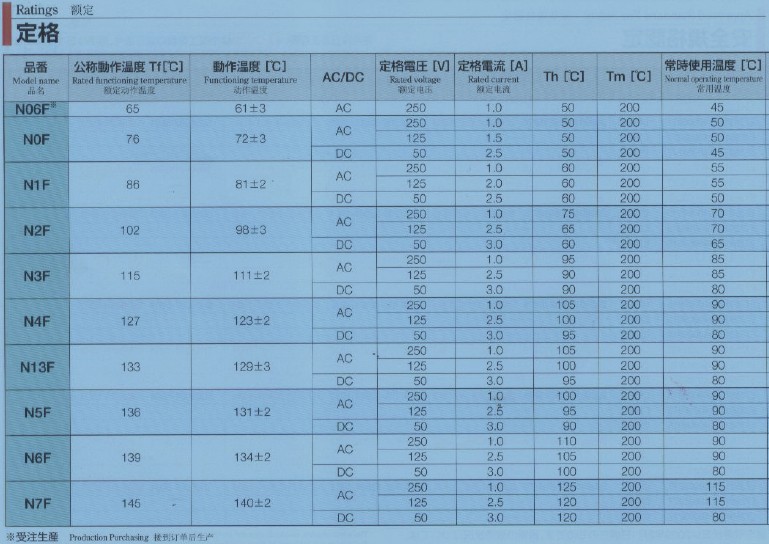

7)N-F Series,AC250V 1A/AC125V 1.5A-2.5A,the specification as below:
N06F,N0F,N1F,N2F,N3F,N4F,N13F,N5F,N6F,N7F;

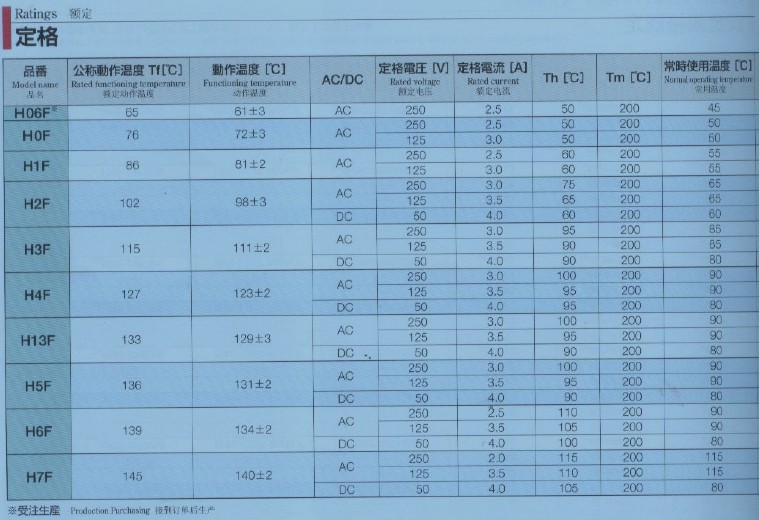

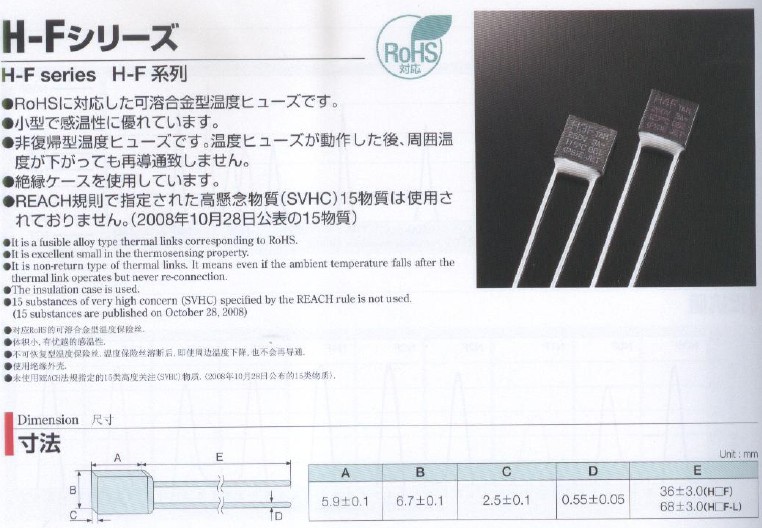

8)H-F Series,AC250V 2.0A-3.0A/AC125V 3.0A-3.5A;the specification as below:
H06F,H0F,H1F,H2F,H3F,H4F,H13F,H5F,H6F,H7F;

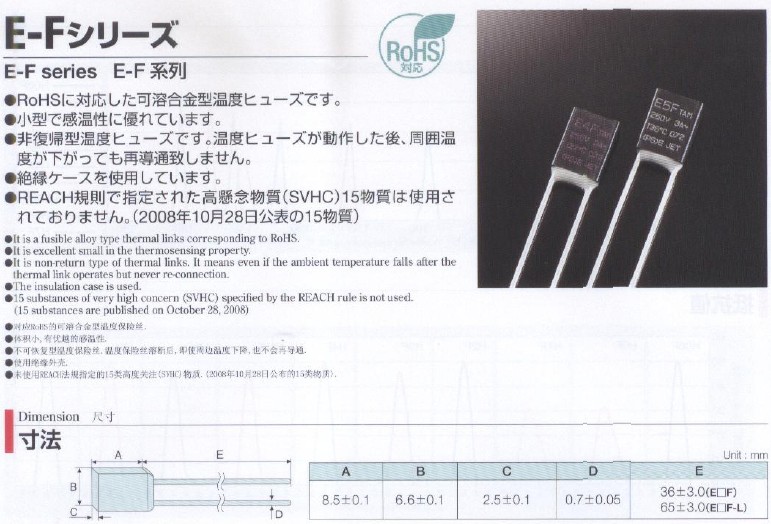

9)E-F Series,AC250V 3.0A/AC125V 4.0A-5.5A;the specification as below:
E06F,E0F,E1F,E2F,E3F,E4F,E13F,E5F,E6F,E7F;

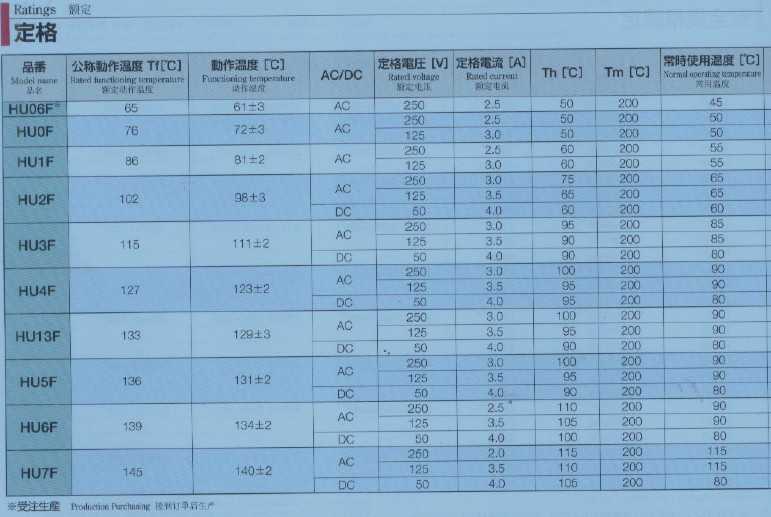

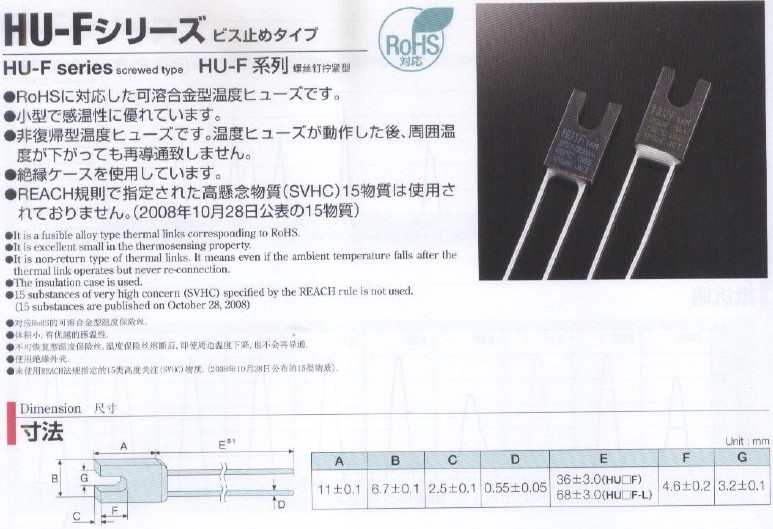

10)HU-F Series,AC250V 2.0A-3.0A/AC125V 3.0-3.5A;the specification as below:
HU06F,HU0F,HU1F,HU2F,HU3F,HU4F,HU13F,HU5F,HU6F,HU7F;

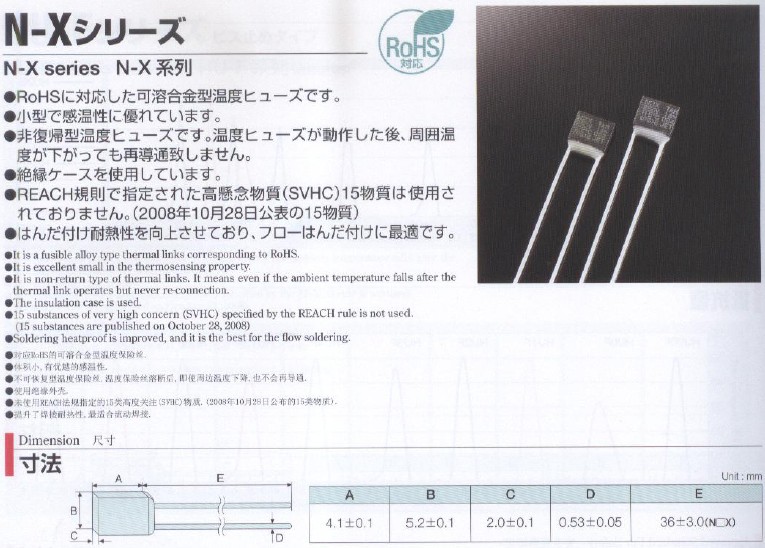

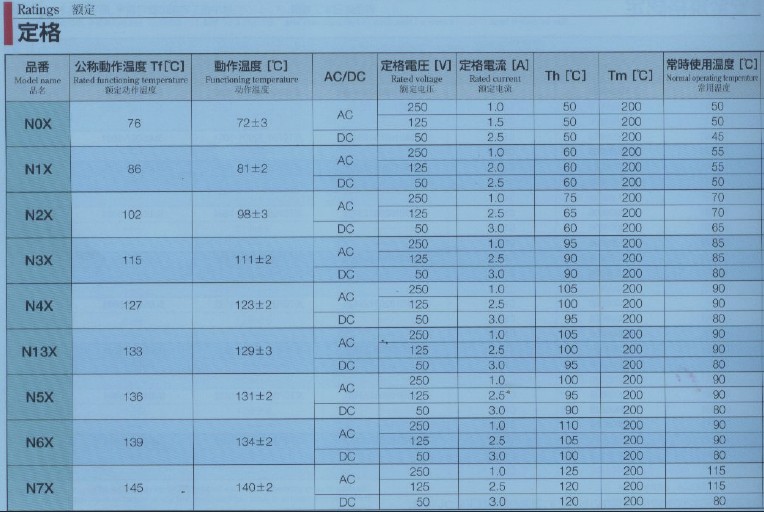

11)N-X Series,AC250V 1.0A/AC125V 1.5A-2.5A;the specification as below:
N0X,N1X,N2X,N3X,N4X,N13X,N5X,N6X,N7X;

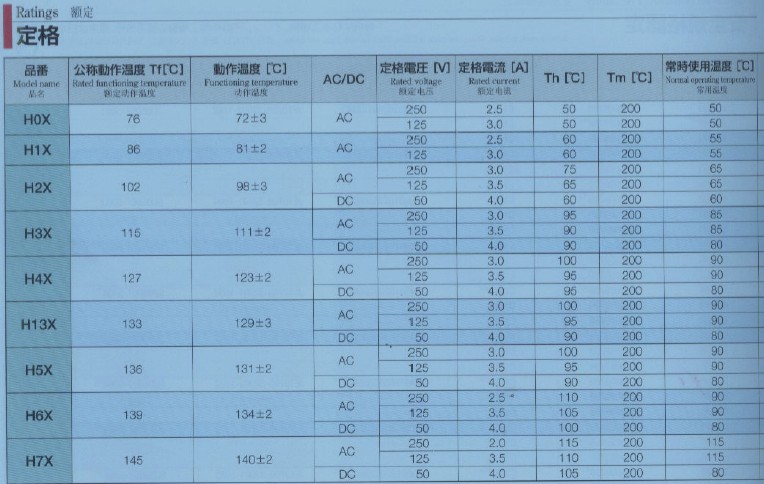

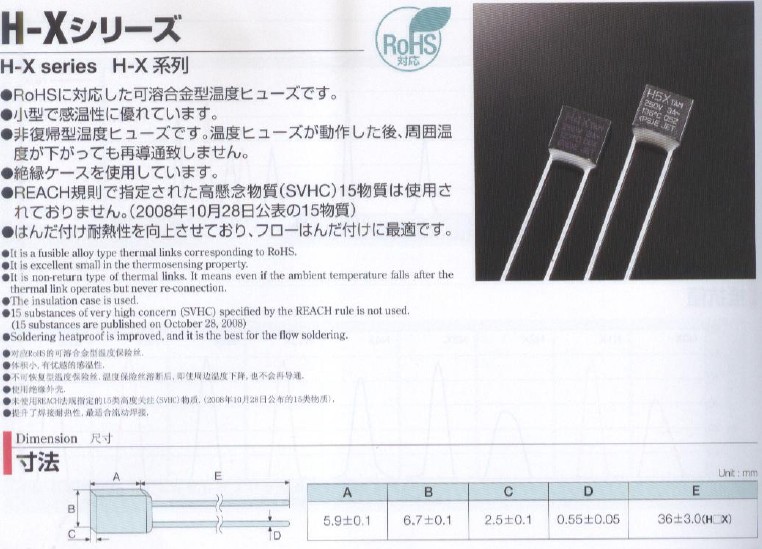

12)H-X Series,AC250V 2.0-3.0A/AC125V 3.0A-3.5A;the specification as below:
H0X,H1X,H2X,H3X,H4X,H13X,H5X,H6X,H7X;

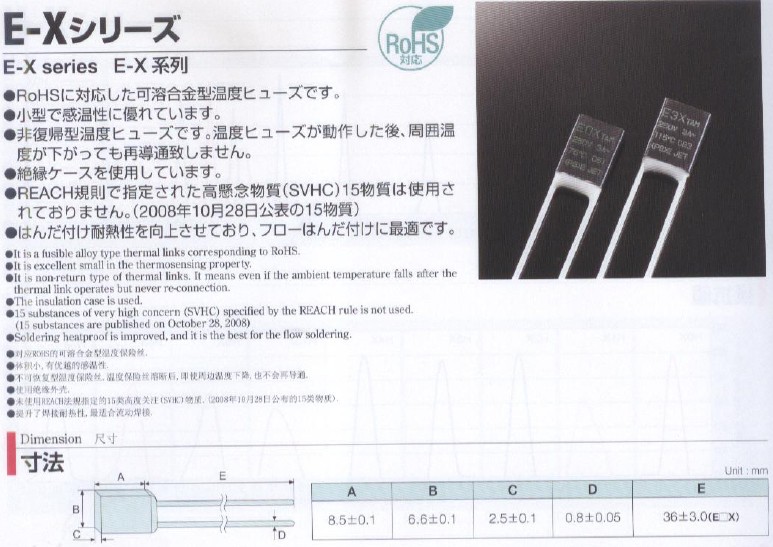

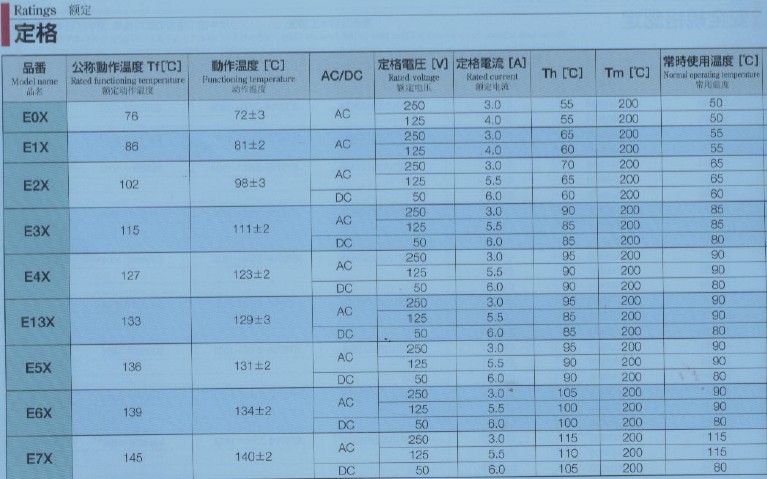

13)E-X Series,AC250V 3.0A/AC125V 4.0A-5.5A;the specification as below:
E0X,E1X,E2X,E3X,E4X,E13X,E5X,E6X,E7X;
14)HU-X Series,AC250V 2.0A-3.0A/AC125V 3.0-3.5A;the specification as below:
HU0X,HU1X,HU2X,HU3X,HU4X,HU13X,HU5X,HU6X,HU7X;

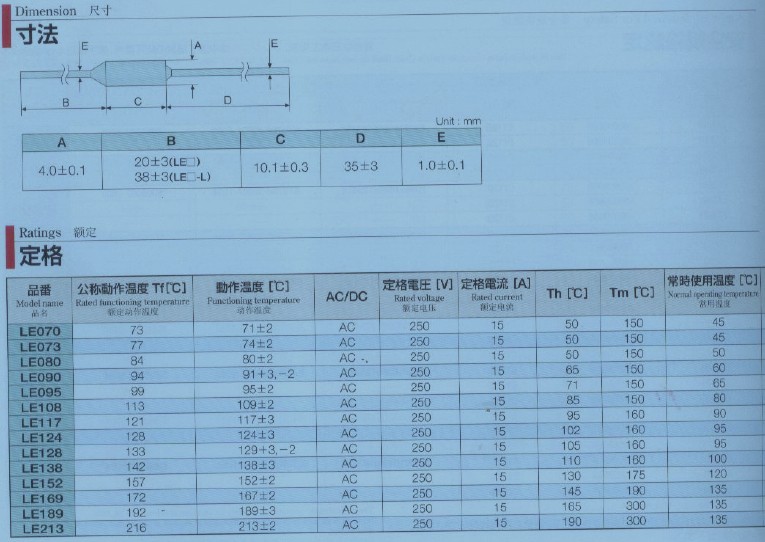

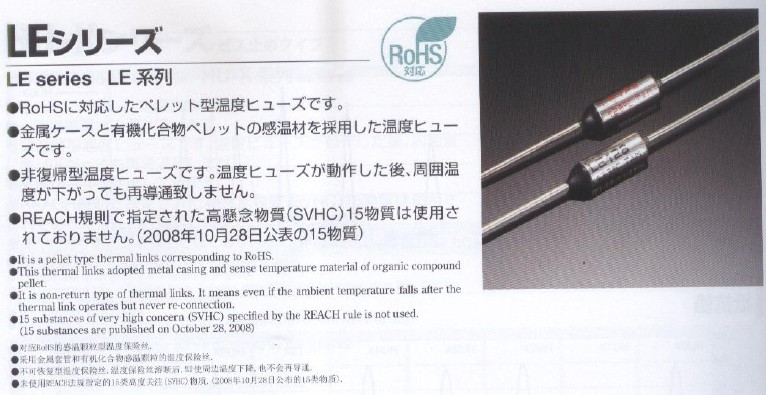

15)LE Series,AC250V 15A;the specification as below:
LE070,LE073,LE080,LE090,LE095,LE108,LE117,LE124,LE128,LE138,LE152,LE169,LE189,LE213;

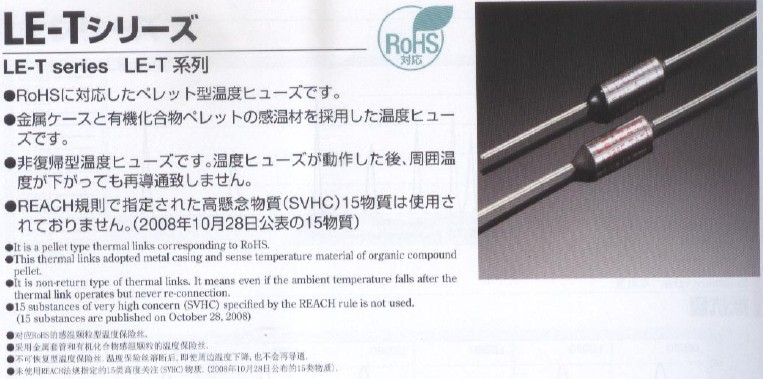

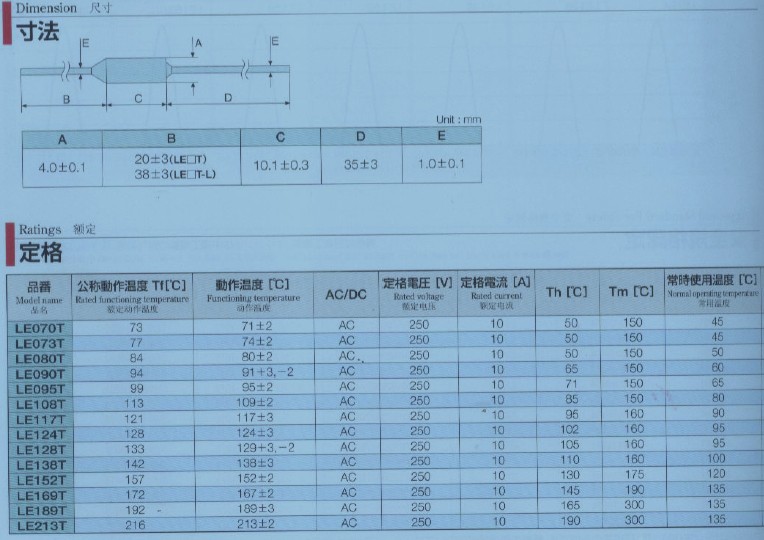

16)LE-T Series,AC250V 10A;the specification as below:
LE070T,LE073T,LE080T,LE090T.LE095T,LE108T,LE117T,LE124T,LE128T,LE138T,LE152T,LE169T,LE189T,LE213T;
The total models as below:
|
