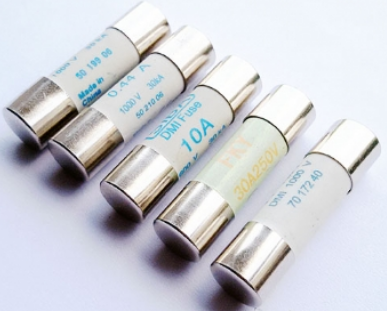

新能源特高壓電流保險管

新能源特高壓電流保險管

服務項目:新能源特高壓電流保險管

點擊次數:22664  次

詳細信息:

愛多電子長期致力于經營新能源高壓保險絲的銷售,成熟產品能做到500V、600V、700V、1000V、3000V、5KV、10KV等,產品品質成熟穩定,歡迎選購:

其產品說明如下:

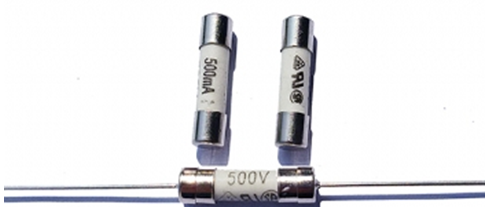

一、 5X20mm高壓保險絲,該特高壓保險管高壓可以做到DC/AC500V、600V、700V、1000V、3000V等型號,具體規格型號如下:


1.規格型號和安規認證:
MODEL  NUMBER  AND  SAFETY  CERTIFICATION

·        品名規格:系列號+額定電流+額定電壓+認證符號

Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
5CH          1A     1000V                   1)系列號  Part  Number
2)額定電流  Rated  Current
1)           2)    3)                         3)額定電壓  Rated  Voltage
1-2 額定電流和額定電壓
Rated Current  And  Voltage
額定電流: 63mA~1
Rated Current: 63mA~1
額定電壓:500V/600V/1000V AC/DC
Rated  Voltage: 500V/600V/1000V AC/DC
1-3標示Marking
保險管上需有下列標示
The fuse shall have the following marking:
規格:特性符號+額定電流+額定電壓
Specification:Characteristic  Symbol+Rated Voltage
63mA~800mA : _mA500V/600V/1KV    1A~1:_A500V/600V/1KV
Trade mark:The Manufacture’s Logo+Part Number+Approvals
63mA~1:

注意:對標示字樣大小沒有規定
Note:Size of the markings have not be specified.
2.適用范圍
SCOPE
適用于一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE

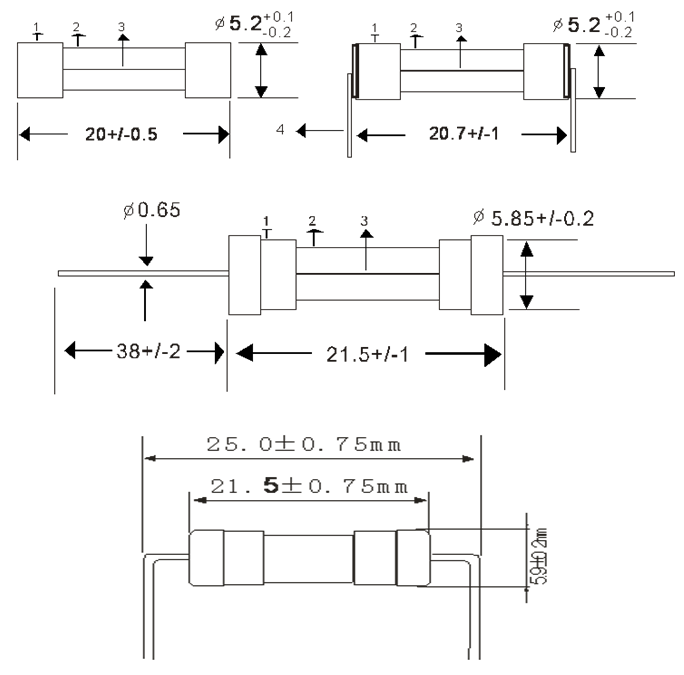

3-1 工程圖(單位:mm)
Outline Drawing and Dimensions(Unit:mm)


3-2結構
Structure

編號
No.

元件
Component

材質
Material

數量
Quantity

(1)

熔絲
Wire

合金
Alloy

1

(2)

銅帽
Cap

黃銅鍍鎳
Brass with mickel plated

2

(3)

本體
Body

玻璃管
CERAMIC Tube

1

(4)

引線
Lead

鍍錫銅線
Tinned Copper wire

2


4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀:不應有破碎、明顯的瘀斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀:帶腳的保險絲
Configuration:Axial Leaded Fuse.

5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力,持續1分種。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷/電流特性:
Pre-Arcing Time/Current Characteristic
a、Breaking capacity(分?jǐn)嗄芰Γ?Time Lag and Fast Acting)

15000A

500/600V/1KV/3KV

AC/DC


b、Electrical characteristics

Time Lag(國標、歐標CCC/VDE)

RATED CURRENT

2.1IN

2.75IN

4IN

10IN


32mA to 100mA

Max.

Min.

Max.

Min.

Max.

Min.

Max.

30 min.

1S

80S

95mS

5S

10mS

100mS

大于100mA

30 min.

1S

80S

150mS

5S

20mS

100mS

Fast Acting

RATED CURRET

2.1IN

2.75IN

4IN

10IN


大于50mA

Max.

Min.

Max.

Min.

Max.

Max.

30 min

10ms

2S

3ms

300ms

20ms

美標(UL)

Rated current

1IN

1.35IN

2IN

MIN

MAX

MAX

63mA~1

4Hrs

1hr

5Sec


c、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.

d、Approvals

Catalogue number

Rated current

Voltage

參照美標、歐標

5CFP/5CTP

63mA~1

500/600V/1KV


7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度范圍:-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度:+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下,相對濕度為95%下多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.

8.焊接條件
SOLDERING PAAMETERS
8-1波峰焊
Wave Solder
焊接溫度:260±5℃
Soldering Temperature:260±5℃
焊接時間:4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2手工焊錫
Manual Solder
焊接溫度:350±5℃
Soldering Temperature: 350±5℃
焊接時間:3 Sec. Max.
Soldering Time: 3 Sec. Max.

9.其他使用注意事項
OTHER NOTICE IN USING
如果需在保險絲上加熱縮套管,烘烤溫度與時間需參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度:不大于150℃  烘烤時間:50s Max.
The temperature should be sel under 150℃,roast time:50s Max.


二、 6.35X32mm特高壓保險管規格如下,該特高壓電流保險管高壓可以做到500V、600V、1000V、3000V等規格,更多型號請電聯。


1.規格型號和安規認證:

MODEL  NUMBER  AND  SAFETY  CERTIFICATION

1-1 品名規格:系列號+額定電流+額定電壓+認證符號

Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.

例子[example]:

6CFUP      10A    500V                    1)系列號 Part  Number

2)額定電流 Rated  Current

1 2 3 3)額定電壓 Rated  Voltage

1-2 額定電流跟額定電壓

Rated Current  And  Voltage

額定電流: 63mA~30A

Rated Current: 63mA~30A

額定電壓: 500V/600V AC/DC

Rated  Voltage: 500V/600V AC/DC

1-3標示Marking

保險絲上需有下列標示

The fuse shall have the following marking:

規格特性符號+額定電流+額定電壓

Specification:Characteristic  Symbol+Rated Voltage

63mA~800mA : _mA250V/500V    1A~30A:_A250V/500V

Trade mark:The Manufacture’s Logo+Part Number+Approvals

63mA~30A:

注意:對標示字樣大小沒有規定

Note:Size of the markings have not be specified.

2.適用范圍

SCOPE

適用于一般電子設備。Used in electronic equipment.

3.工程圖和結構

OUTLINE DRAWING AND STRUCTURE

3-1 工程圖(單位:mm

Outline Drawing and Dimensions(Unit:mm)


3-2結構

Structure

編號

No.

元件

Component

材質

Material

數量

Quantity

(1)

熔絲

Wire

合金

Alloy

1

(2)

銅帽

Cap

黃銅鍍錫

Brass with mickel plated

2

(3)

本體

Body

陶瓷管

CERAMIC Tube

1

(4)

引線

Lead

鍍錫銅線

Tinned Copper wire

2

4.外觀及形狀

APPEARANCES AND CONFIGURATION

4-1外觀:不應有破碎、明顯的瘀斑

Appearances:There shall no fragmentation and of remarkable blotch.

4-2形狀:帶腳的保險管

Configuration:Axial Leaded Fuse.

5.物理特性

PHYSICAL CHARACTERISTIC

5-1 拉力測試

Tensile test

沿端子的軸向施加10N的拉力,持續1分鐘。

Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.電氣特性

ELECTRICAL CHARACTERISTICS

熔斷、電流特性:

Pre-Arcing Time/Current Characteristic

a、Breaking capacity(分?jǐn)嗄芰Γ?/strong>(Time Lag and Fast Acting)

1000KA

500V

AC/DC

bElectrical characteristics

Fast Acting(參照美標)

Rated current

135%

200%

63mA~30A

Max.

Max.

1 hour

120 sec

c、Temperature character

When 100% of rating the temperature rise doesn’t exceed 75.

d、Approvals

Catalogue number

Rated current

Voltage

參照國標,美標

6CFUP

63mA~30A

250V/500V


7.環境特性

ENVIRONMENTAL SPECIFICATION

7-1 操作溫度范圍:-5~60

Operating Temperature: -5~60

7-2 保存條件

Storage Conditions

溫度:+10~60

Temperature: +10~60

在相對濕度≤75%下平均可存放3

On average, It can be stored below the relative humidity or 75% for 3 years.

在非露天下,相對濕度為95%下最多可存放30天。

Without dew, It can be kept under humidity of 95% for 30 days.

8.焊接條件

SOLDERING PAAMETERS

8-1波峰焊

Wave Solder

焊接溫度:260±5

Soldering Temperature:260±5

焊接時間:4 Sec. Max.

Soldering Time:4 Sec.Max.

8-2手工焊錫

Manual Solder

焊接溫度:350±5

Soldering Temperature: 350±5

焊接時間:3 Sec. Max.

Soldering Time: 3 Sec. Max.

9.其他使用注意事項

OTHER NOTICE IN USING

如果需在保險絲上加熱縮套管,烘烤溫度與時間需參照以下規定

If heat shrink tubing was needed,the roast temperature and time should be refer to the following.

設定烘烤溫度:不大于150 烘烤時間:50s Max.

The temperature should be sel under 150,roast time:50s Max.

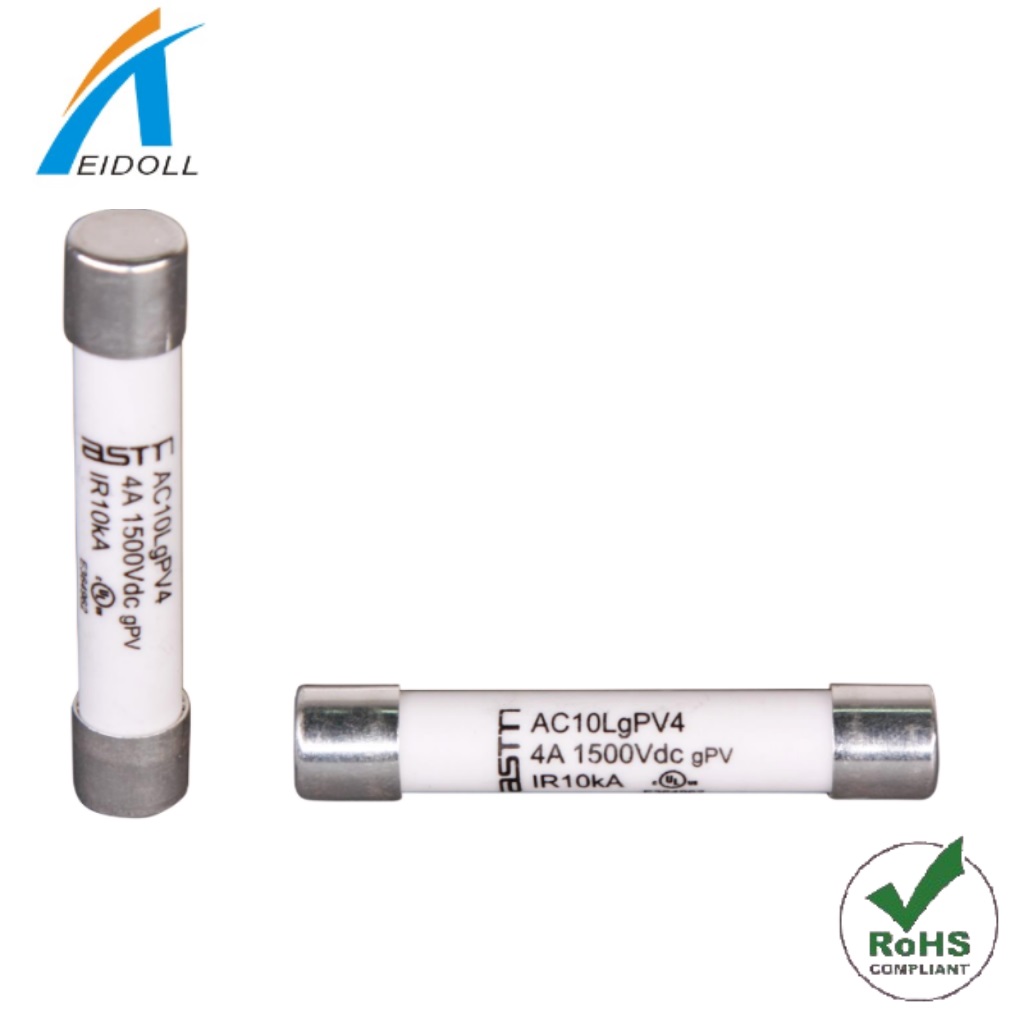

三、 10X38mm特高壓系能源保險絲,該特高壓電流保險管可以按照客戶要求做到500V、600V、1000V、3000V 等,更多規格請電話聯系。

1.規格型號和安規認證
MODEL  NUMBER  AND  SAFETY  CERTIFICATION

·        品名規格:系列號+額定電流+額定電壓+認證符號

Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
10HCU      40A     500V                   1)系列號  Part  Number
2)額定電流  Rated  Current
1)               2)      3)                     3)額定電壓  Rated  Voltage
1-2 額定電流和額定電壓
Rated Current  And  Voltage
額定電流: 100mA~50A
Rated Current: 100mA~50A
額定電流;125V/250V~1000V AC
Rated  Voltage:125V/250V~1000V AC
1-3標示Marking
保險管上需要有下列標示
The fuse shall have the following marking:
規格:特性符號+額定電流+額定電壓
Specification:Characteristic  Symbol+Rated Voltage
100mA~800mA : _mA500V    1A~50A:_A500V
Trade mark:The Manufacture’s Logo+Part Number+Approvals

100mA~500A:

注意:對標示字樣大小沒有規定
Note:Size of the markings have not be specified.




2.適用范圍
SCOPE
適用于一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE

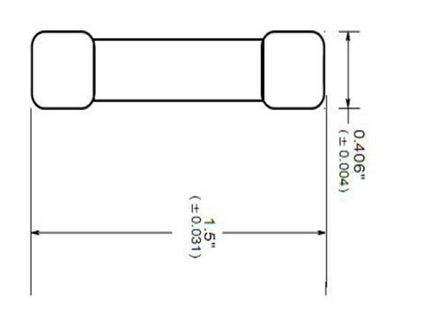

3-1 工程圖(單位:mm)
Outline Drawing and Dimensions(Unit:mm)

3-2結構
Structure

編號
No.

元件
Component

材質
Material

數量
Quantity

(1)

熔絲
Wire

合金
Alloy

1

(2)

銅帽
Cap

黃銅鍍錫
Brass with mickel plated

2

(3)

本體
Body

陶瓷管
CERAMIC Tube

1



4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀:不應有破碎、明顯的瘀斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀:帶腳的保險管
Configuration:Axial Leaded Fuse.
5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力,持續1分鐘。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.
6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷/電流特性:
Pre-Arcing Time/Current Characteristic
a、Electrical characteristics
Fast Acting(參照美標)

Rated current

135%

200%


100mA~50A

Max.

Max.

1 hour

120 sec

b、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.

7.環境特性

ENVIRONMENTAL SPECIFICATION
7-1 操作溫度范圍:-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度:+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下,相對濕度為95%下多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.
8.其他使用注意事項
OTHER NOTICE IN USING
如果需要在保險管上加熱縮套管,烘烤溫度與時間需要參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度:不大于150℃  烘烤時間:50s Max.
The temperature should be sel under 150℃,roast time:50s Max.
